Product Details:
|
| Product Name: | LED Broadcast Lighting | Model No.: | W60 |
|---|---|---|---|
| Material: | Aluminum | Weight: | 11.5 KG |
| Work Voltage: | 100-200V AC, 12-17V DC | Beam Angle: | 180° |
| Power: | 200W | TLCI: | ≥95 |
| High Light: | broadcast studio lighting,professional photography lighting |
||
180° Wide Angle Convex LED Broadcast Lighting 200W Aluminum Studio Light
Product Specifications
| Model | W60 |
| LED | 2048pcs of ultra bright chip LEDs |
| Color Termperature | 3200K±200K ~ 5600K±200K |
| Beam angle | 180° |
| Working Voltage | 100-200V AC, 12-17V DC |
| CRI / TLCI | Ra: 95~98 / TLCI ≥95 |
| Dimension | 73.7×53 ×22 CM |
| Weight | 11.5 kg (without AC power adapter); 12.7 kg with~ |
| V-lock amount | 2 pcs |
Standard set Includied
Optional Accessories
Product Characteristics
▪ W60 is composed of 2048 pcs of ultra bright chip LEDs with standard color teperature and hight CRI and TLCI reaching up to 95 or above. The LEDs' life time is 50,000 hours.

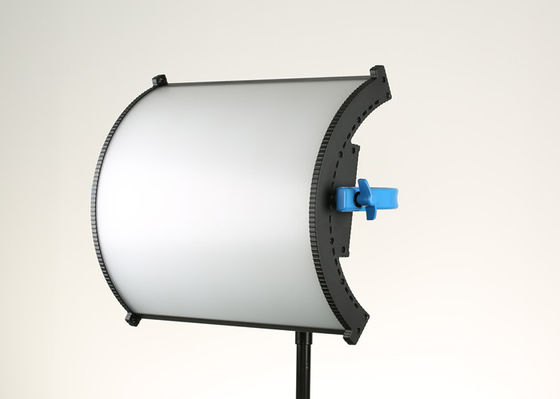

▪ The convex design provides soft wrap-around light with less shadow and wider angle of coverage.
▪ Produce a soft, birght and stable beam with standard color temperature.
▪ The design includes an all-alluminum frame for better heat dissipation to helo ensure a long product life.
▪ Features V-lock battery compatibility for convenient use on location.
▪ The LCD displays real time data for color temperature, brightness and DMX channel inforamtion.

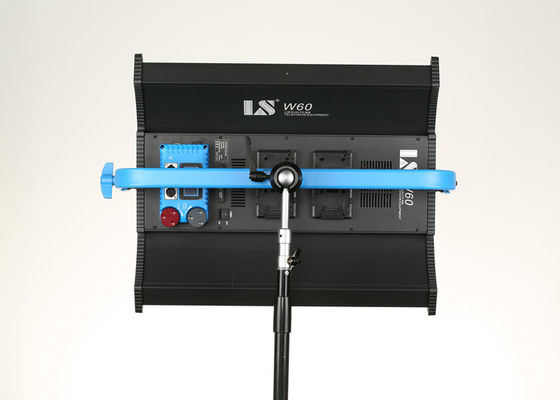

▪ All metal yoke and ball head for safely mouting on stands or hanging in any suirable location.
▪ The unit is heat free and remains consisitently illuminated even as the PWM integrated design.
▪ Bi-color design is adjustable color temperature from 3200K to 5600K.
▪ Fully dimmable from 0-100%, flicker-free due to the PWM integrated design.
▪ Suitable for inddor and outdoor photography and videography, portrait photography, wedding photography, especially for children photography.
【W60 Illuminance】
|
Color Temperature Distance Illuminance |
5600K |
3200K |
| 1M | 3605 Lux | 3173 Lux |
| 2M | 1115 Lux | 966 Lux |
Cautions:
1. Please do not disassemble or modify the light.
2. Please do discharge and recharge the battery at least once time for every month if it is not in use for long time.
3. Do not operate with wet hands which may cause electric shock.
4. Do not operate in environments near flammable gasses or volatile liquids as this may increase the risk of explosion fire.
5. Do not keep it in a encloesed space like a car on a sunny day.
6. Please do take off the batteries when in storage.
7. The charger adapter is used for battery charging only.Please do not use on the light directly.
8. Please do discharge and recharge the battery at least once for every month if it is not in use.
9. It is not allowed to drop or impact the light to avoid fire.
Warranty:
The LED light is guaranteed for 12 months.
